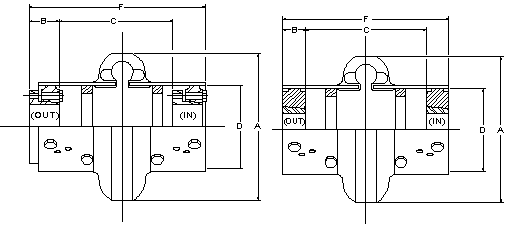

QD		TAPER-LOCK®
	NOTE: Bushings are "NOT" included with hubs.

Specification Data With QD Hubs

Spacer Omega No.	QD Bush. No.	Recom. Max. Bore (In.)	HP/100 RPM	Continuous Torque Rating (In. Lbs.)	Max RPM	Dimensions In Inches							Weight (Lb.)
						A	B	C		D	F
								Min.	Max.		Min.	Max.
ES4-R ES5-R ES10-R	JA SH SDS	1.25 1.63 1.94	0.88 1.48 2.30	550 925 1450	7500 7500 7500	4.56 5.38 6.38	1.00 1.25 1.31	3.24 3.51 3.60	5.56 5.06 5.49	2.60 3.13 3.65	7.25 7.25 7.25	7.71 7.82 8.24	4.2 5.7 6.9
ES20 ES30 ES40 ES50 ES60	SK SF E E F	2.50 2.94 3.44 3.44 3.94	3.65 5.79 8.85 12.14 19.84	2300 3650 5500 7650 12,500	4800 4200 3600 3100 2800	7.25 8.25 9.50 11.00 12.50	1.88 2.00 2.63 2.63 3.63	2.82 3.36 2.94 2.44 4.25	6.96 6.44 5.74 6.24 7.68	4.48 5.42 6.63 8.13 8.75	9.38 9.38 9.38 9.38 12.50	10.84 10.32 10.71 11.21 14.65	11.1 17.9 28.8 43.6 57.4
ES70 ES80	J M	4.44 5.50	35.12 62.70	22,125 39,500	2600 1800	14.00 16.00	4.50 6.75	3.50 1.35	6.72 4.76	9.25 11.25	12.52 14.17	15.40 17.58	84.1 150.0

NOTE: Dimensions may vary depending on bushing manufacturer.

Specification Data With TAPER-LOCK® Hubs

Spacer Omega No.	Bush. No.	Recom. Max Bore (In.)	HP/100 RPM	Continuous Torque Rating (In. Lbs.)	Max RPM	Dimensions In Inches							Weight (Lb.)
						A	B	C		D	F
								Min.	Max.		Min.	Max.
ES3-R ES4-R ES5-R ES10-R	1008 1008 1108 1310	1.00 1.00 1.13 1.44*	0.58 0.88 1.48 2.30	365 550 925 1450	7500 7500 7500 7500	4.00 4.56 5.38 6.38	0.88 0.88 0.88 1.00	3.83 3.83 3.83 3.71	5.38 5.38 5.38 5.25	2.32 2.60 3.13 3.65	7.25 7.25 7.25 7.25	7.25 7.25 7.25 7.25	3.2 4.2 6.0 7.9
ES20 ES30 ES40 ES50 ES60	1610 2012 2517 2517 3020	1.69* 2.12* 2.69* 2.69* 3.25*	3.65 5.79 8.85 12.14 19.84	2300 3650 5500 7650 12,500	4800 4200 3600 3100 2800	7.25 8.25 9.50 11.00 12.50	1.00 1.25 1.75 1.75 2.00	4.84 4.59 4.09 4.09 6.09	6.75 6.50 6.00 6.00 8.75	4.48 5.42 6.63 8.13 8.75	9.38 9.38 9.38 9.38 12.50	9.38 9.38 9.59 9.59 12.84	11.9 18.0 26.8 37.4 60.7
ES70 ES80	3535 4040	3.94 4.44	35.12 62.70	22,125 39,500	2600 1800	14.00 16.00	3.50 4.00	4.59 4.09	7.34 6.84	9.25 11.25	12.50 12.50	14.34 14.84	81.4 93.2

Suffix "R" designates high speed ring design. Rings are furnished standard for sizes ES2-R to ES10-R, optional for sizes ES20 to ES80.
With shallow keyway. *With extended bore bushings.
Service factor = 1.0. This rating may be lower if limited by the bushing rating, particularly if severe service conditions exist.
Consult bushing manufacturer.
Spacer couplings furnished with optional high speed rings (sizes ES20 to ES80) can be operated up to maximum allowable speeds for standard series couplings.
Minimum shaft spacing is 0.25 inch. See page E-8 for additional information.
Without compression bushings.
® TAPER-LOCK® is the registered trademark of Reliance Electric Company.
