La Sonda de Interfase mide el espesor de hidrocarburos flotantes y pesados con una exactitud de 1 milímetro en su fase no aquosa. Este instrumento está certificado por la Asociación Canadiense de Normas para uso en ambientes explosivos. El probador angosto de 16mm tiene una funda de acero inoxidable y permite fácilmente el acceso en pozos angostos y espacios reducidos. Tenemos disponible un probador de 38 mm de diámetro para ambientes agresivos. Las baterías de 9 voltios están localizadas en la cara frontal y son de fácil acceso. Las alarmas visual y sonora contínuas indican la presencia de hidrocarburos y la intermitencia indica la presencia de agua. El medidor de Interfase
es resistente, duradero y fácil de usar. . La nueva mini sonda de interfase (122M) se suministra en carrete pequeño y un largo de cinta de 20 m. El probador tiene un diámetro de 16 mm y un largo de 160 mm. Utiliza una batería de 9V con una vida útil de 300 horas. La exactitud es de 1 mm.

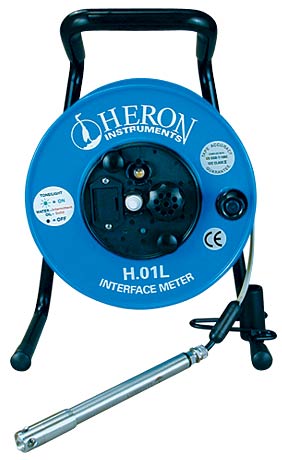

The
H.01L oil / water interface meter is used to accurately measure the
thickness of floating product (LNAPL) above the water table. It will also
detect and measure sinking layers of DNAPL. The H.01L with its slim
probe 5/8in (13mm), is ideal for wells, piezometers and direct push equipment
as narrow as 3/4in (19mm) ID. The probe and tape will withstand hydrocarbons,
solvents and other contaminants. This unit is used by professionals involved
with the monitoring and remediation of groundwater contaminated by oil products.
The H.01L interface meter is suitable for wells, boreholes, underground
and above ground storage tanks.
FEATURES
- Able to
measure product layer 1/200th ft (1 mm) thick.
- Certified
Intrinsically
Safe to
CSA/NRTL, Class 1.GR A. B. C. D.
- Accurate
(complies with US GGG-T-106E standards) Kynar® jacketed, high tensile
steel tape with
stretch proof
stainless steel conductors
- The standard
tapes are marked in feet and 100th/ft or meters and mm
- Standard
tape lengths are 50ft, 100ft, 150ft and 200ft to 1000ft in steps of
100ft (15m, 30m, 50m, 100m, thereafter in 50m increments). Intermediate
lengths are to special order
- Ultra-slim
5/8"
(15mm) diameter stainless steel field replaceable probe*
- Unique flexible
link between the tape and the probe provides Protection
at this vulnerable point.
- Probe sleeve,
removable to allow the probe to be used
in Narrow
Wells
- Durable
U.V.
and high impact resistant engineered plastic reel with all
stainless steel fittings
- Sturdy
polyester
coated steel frame with a comfortable vinyl grip and "third hand"
built in casing hanger that allows you to hang the unit on the well
while you record results.
- Water
and dust proof
epoxy encapsulated
electronics on an easily removable front electronics panel
- One easy
to change
9 V
battery located on the faceplate electronic panel
- Complete
with a tough
nylon
carrying bag and a comprehensive
cleaning kit
- 10
year
limited
AVAILABLE
Tefzel®
jacketed tape
*The probe has a non removable 3/4 dia. protector. If the 5/8 only
probe is required please mention at the time of ordering.
Containing one spare probe, Two wrenches, One spare battery, Two spare
panel nuts and a cleaning brush.
DIMENSIONS
| Reel
Weight |
5lbs
(2kgs) |
| Tape
per 100ft |
(30m)
3lbs (1.28kgs) |
| Overall
Height |
13.5in
(34 cm) |
| Width |
10in
(25cm) |
| Depth |
8in
(20cm) |
|
